ASUS TUF Gaming GeForce RTX 3060 V2 OC Edition 12GB GDDR6 Graphics Card

ASUS TUF Gaming GeForce RTX 3060 V2 OC Edition 12GB GDDR6 Graphics Card

ASUS TUF Gaming GeForce RTX™ 3060 V2 OC Edition 12GB GDDR6 buffed-up design with chart-topping thermal performance.

• NVIDIA Ampere Streaming Multiprocessors: The building blocks for the worlds fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
• 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
• 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.

• OC edition: Boost clock 1882 MHz (OC mode)/ 1852 MHz (Gaming mode)

• Axial-tech fan design has been newly tuned with a reversed central fan direction for less turbulence.

• Dual ball fan bearings can last up to twice as long as sleeve bearing designs.

• An all-aluminum shroud and metal backplate enhance durability.

• GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.

BUILT TUF

The TUF GAMING GeForce RTX™ 3060 has been stripped down and built back up to provide more robust power and cooling. A new all-metal shroud houses three powerful axial-tech fans that utilize durable dual ball fan bearings. Fan rotation has been optimized for reduced turbulence, and a stop mode brings all three fans to a halt at low temps. Beneath, a thick heatsink keeps thermals under tight control. Additional features, including TUF components, Auto-Extreme Technology, and a backplate vent make the TUF a proper powerhouse. For builders looking for a new "old faithful", this card has your back.

FANS | AXIAL-TECH UPGRADES

TUF Gaming cards leverage our tried-and-true Axial-tech fan design, with three fans working in tandem to satisfy the thermal demands of NVIDIA's new high-octane design. The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types.

HEATSINK | MAXCONTACT

To get heat up off the die and into the heatsink array, we've engaged MaxContact technology to polish the surface of the heat spreader and improve smoothness at the microscopic level. The extra flatness allows for better contact with the die for enhanced thermal transfer.

HEATSINK | 2.7-SLOT DESIGN

The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card's large, 2.7-slot footprint.

PCB | TUF COMPONENTS

Components are selected for TUF Gaming graphics cards based on their durability and performance. In addition to top-shelf chokes and MOSFETs, capacitors that meet military-grade certification make the TUF stand tall amongst the competition. The components are soldered to the PCB using our advanced Auto-Extreme automated manufacturing process. Smooth joints on the rear of the PCB and the elimination of human errors ensure each graphics card meets our rigorous specifications. Finally, to ensure flawless performance when it counts, the cards are subjected to a grueling 144-hour validation trial.

DESIGN |FRESH SHROUD

An all-aluminum shroud adds robust protection to TUF Gaming graphics cards and a no-nonsense industrial design and grayscale colorway fits into any build with ease.

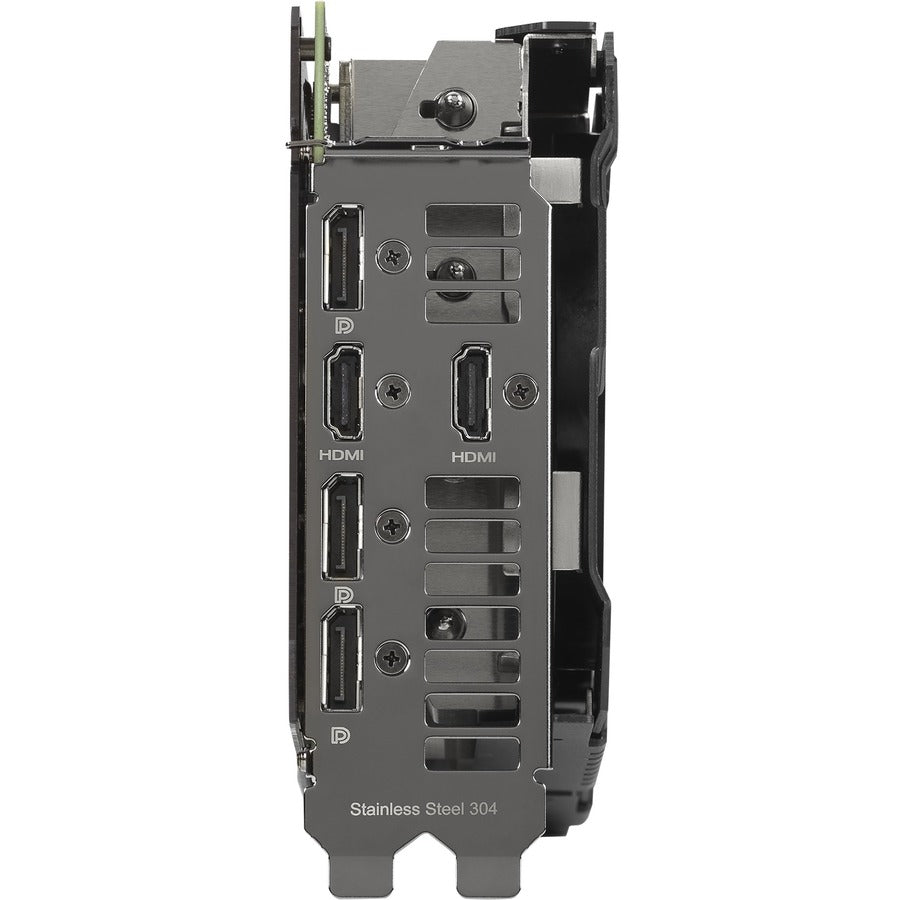

• Stainless Steel I/O Bracket

• Dual BIOS

• Vented Backplate

Product Overview

UPC Code: 195553310192
Manufacturer Warranty: 3 Year
Returns Allowed: yes
Return Period (Days): 14
Add'l Return Info: Past Exch-Call Asus 888-678-3688
Country of Origin: CHINA

General Information

Manufacturer:   ASUS Computer International
Manufacturer Part Number:   TUF-RTX3060-O12G-V2-GAM
Manufacturer Website Address:   usa.asus.com
Brand Name:   TUF
Product Model:   TUF-RTX3060-O12G-V2-GAMING
Product Name:   Gaming GeForce RTX 3060 V2 OC Edition Graphic Card
Product Type:   Graphic Card

Technical Information

API Supported:   DirectX 12 Ultimate
API Supported:   OpenGL 4.6
Multi-GPU Technology:   No
Number of Monitors Supported:   4
Maximum Digital Display Resolution:   7680 x 4320
CUDA Cores:   3584

Processor & Chipset

Chipset Manufacturer:   NVIDIA
Chipset Line:   GeForce
Chipset Series:   RTX
Chipset Model:   RTX 3060
GPU Boost Clock:   1.88 GHz

Memory

Standard Memory:   12 GB
Memory Technology:   GDDR6
Bus Width:   192 bit

Interfaces/Ports

Host Interface:   PCI Express 4.0
DisplayPort:   Yes
Number of DisplayPort Outputs:   3
HDMI:   Yes
Number of HDMI Outputs:   2

Power Description

Power Supply Wattage:   750 W
Power Connector:   1x 8-pin

Physical Characteristics

Slot Space Required:   Triple
Form Factor:   Plug-in Card
Cooler Type:   Fan Cooler
Height:   2.1"
Width:   5.6"
Length:   11.8"

Miscellaneous

Package Contents:

• Gaming GeForce RTX 3060 V2 OC Edition Graphic Card
• 1 x TUF Certificate Of Reliability
• 1 x Collection Card
• 1 x Speedsetup Manual

Platform Supported:   PC
Environmentally Friendly:   Yes
Environmental Certification:   RoHS

Warranty

Limited Warranty:   36 Month
