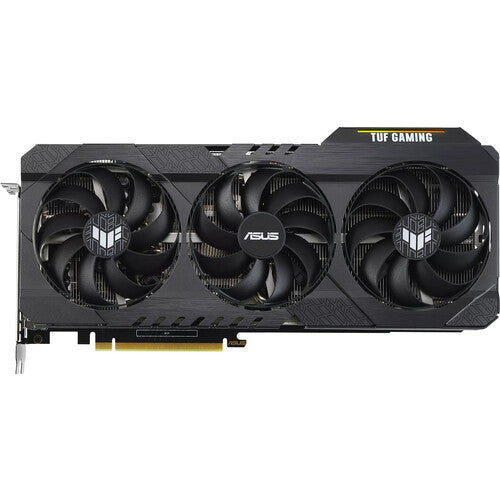

Asus TUF Gaming GeForce RTX 3060 Ti V2 OC 8GB GDDR6 Graphics Card

TUF Gaming GeForce RTX™ 3060 Ti V2 OC Edition 8GB GDDR6 with LHR offers a buffed-up design that delivers chart-topping thermal performance.

• NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.

• 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.

• 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.

• This GeForce RTX 3060 Ti graphics card with LHR (lite hash rate) delivers 25 MH/s ETH hash rate (est.).

• OC Edition: Boost clock 1785 MHz (OC mode)/ 1755 MHz (Gaming mode).

• Axial-tech fan design has been newly tuned with a reversed central fan direction for less turbulence.

• Dual ball fan bearings can last up to twice as long as sleeve bearing designs.

• Military-grade capacitors and other TUF components enhance durability and performance.

• GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.

Graphic Engine
NVIDIA GeForce RTX^TM 3060 TI
Bus Standard
PCI Express 4.0
OpenGL
OpenGL4.6
Video Memory
8GB GDDR6
Engine Clock
OC Mode - 1785 MHz (Boost Clock)
Gaming Mode - 1755 MHz (Boost Clock)
CUDA Core
4864
Memory Speed
14 Gbps
Memory Interface
256-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 2 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x TUF certificate of Reliability
1 x Collection card
1 x Speedsetup manual
Software
ASUS GPU Tweak II and GeForce Game Ready Driver and Studio Driver: please download all software from the support site.
Recommended PSU
750W
Power Connectors
1 x 8-pin
Slot
2.7 Slot
Note
- Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the "Choose By Wattage" feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
Item Dimension (L inchxW inchxH inch)
16 x 10 x 4

Weight
5.00 lb

Warranty Information
3 years
