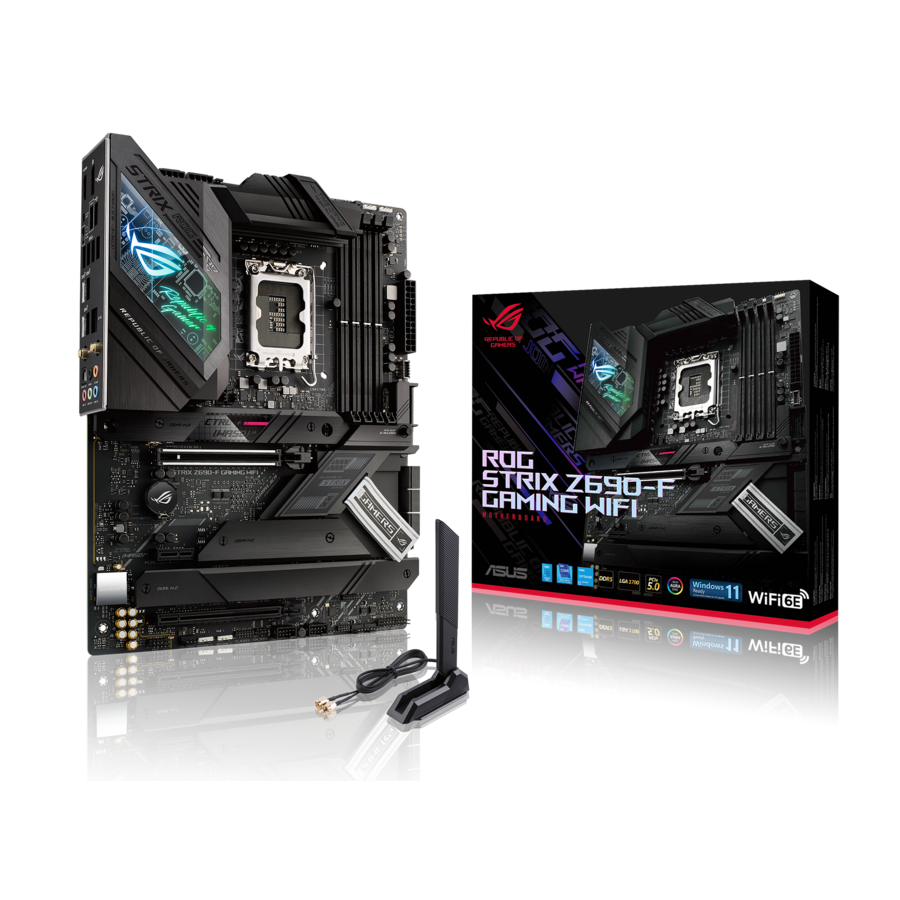

ASUS ROG Strix Z690-F Gaming WiFi 6E Desktop Motherboard

ASUS ROG Strix Z690-F Gaming WiFi 6E Desktop Motherboard

$292.99 USD
$292.99 USD
Sale Sold out
Shipping calculated at checkout.

ASUS ROG Strix Z690-F Gaming WiFi 6E Desktop Motherboard

Intel Z690 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX

Pentium Gold, Celeron, Core i5, Core i7, Core i9 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 6 x SATA Interfaces


STRIX Z690-F GAMING WIFI

ROG Strix Z690-F Gaming WiFi offers premium-grade power delivery and cooling to unleash the full force of 12th Gen Intel® Core™ processors. Framerates and load times can be boosted even further by all-new support for DDR5 memory and PCIe® 5.0 video cards. Plus, ASUS-exclusive intelligent controls help optimize PC settings, while onboard WiFi 6E can bring lightning-fast data transfers to an endless variety of scenarios. On top of all that, DIY-friendly innovations help simplify the PC building process to get to you up and running smoothly.


Product Overview

UPC Code: 195553441766
Manufacturer Warranty: 3 Year
Add'l Return Info: Past Exch-Call Asus 888-678-3688
Country of Origin: CHINA

General Information

Manufacturer:   ASUS Computer International
Manufacturer Part Number:   ROG STRIX Z690-F GAMING WIFI
Manufacturer Website Address:   usa.asus.com
Brand Name:   Asus ROG
Product Line:   Strix
Product Model:   Z690-F GAMING WIFI
Product Name:   Strix Z690-F GAMING WIFI Desktop Motherboard
Product Type:   Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:   Intel
Chipset Model:   Z690
Total Processor Supported:   1
Processor Socket:   Socket LGA-1700
Processor Generation Supported:   12th Gen
Processor Supported:   Celeron
Processor Supported:   Core i5
Processor Supported:   Pentium Gold
Processor Supported:   Core i7
Processor Supported:   Core i9

Memory

Number of Memory Slots:   4
Memory Form Factor:   UDIMM
Memory Form Factor:   DIMM
Maximum Memory Supported:   128 GB
Memory Technology:   DDR5 SDRAM
Memory Speed Supported:   5200 MHz
Memory Speed Supported:   5400 MHz
Memory Speed Supported:   6000 MHz
Memory Speed Supported:   6200 MHz
Memory Speed Supported:   6400 MHz
Memory Speed Supported:   4800 MHz
Memory Speed Supported:   5000 MHz
Memory Speed Supported:   5600 MHz
Memory Speed Supported:   5800 MHz
Intel Optane Memory Ready:   Yes

I/O Controller

Controller Type:   Serial ATA/600
Intel RST:   Yes
RAID Supported:   Yes
RAID Levels:   0
RAID Levels:   10
RAID Levels:   5
RAID Levels:   1

Video

Onboard Video:   CPU Dependent Video

Audio

Audio Channels:   7.1

Network & Communication

Bluetooth:   Yes
2.5Gigabit Ethernet:   Yes
Wireless LAN:   Yes
Wireless LAN Standard:   IEEE 802.11 a/b/g/n/ac/ax

I/O Expansions

Number of Total Expansion Slots:   3
Total Number of PCI Express Slots:   3
Number of PCI Express x1 Slots:   1
Number of PCI Express x16 Slots:   2

Interfaces/Ports

Total Number of USB Ports:   10
Number of USB 2.0 Ports:   2
Number of USB 3.2 Ports:   2
Number of USB 3.2 Gen 1 Ports:   4
Number of USB 3.2 Gen 2 Type-A Ports:   2
HDMI:   Yes
DisplayPort:   Yes
Number of Network (RJ-45) Ports:   1

Onboard Interfaces

Number of SATA Interfaces:   6
Number of M.2 Interfaces:   4
Total Number of Onboard USB Ports:   7
Number of Onboard USB 2.0 Ports:   4
Number of Onboard USB 3.2 Ports:   3

Physical Characteristics

Form Factor:   ATX
Width:   12"
Depth:   9.6"

Miscellaneous

Package Contents:
  • Strix Z690-F GAMING WIFI Desktop Motherboard
  • 4 x SATA 6Gb/s cables
  • 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
  • 1 x M.2 Q-Latch package
  • 1 x M.2 Q-Latch package for M.2 backplate
  • 2 x M.2 Rubber Packages
  • 1 x ROG key chain
  • 1 x cable tie
  • 1 x ROG STRIX stickers
  • 1 x ROG STRIX thank you card
  • 1 x Support DVD
  • 1 x User manual

Brand Compatibility:   Intel
Environmentally Friendly:   Yes
Environmental Certification:   RoHS

Warranty

Limited Warranty:   3 Year
