ASUS

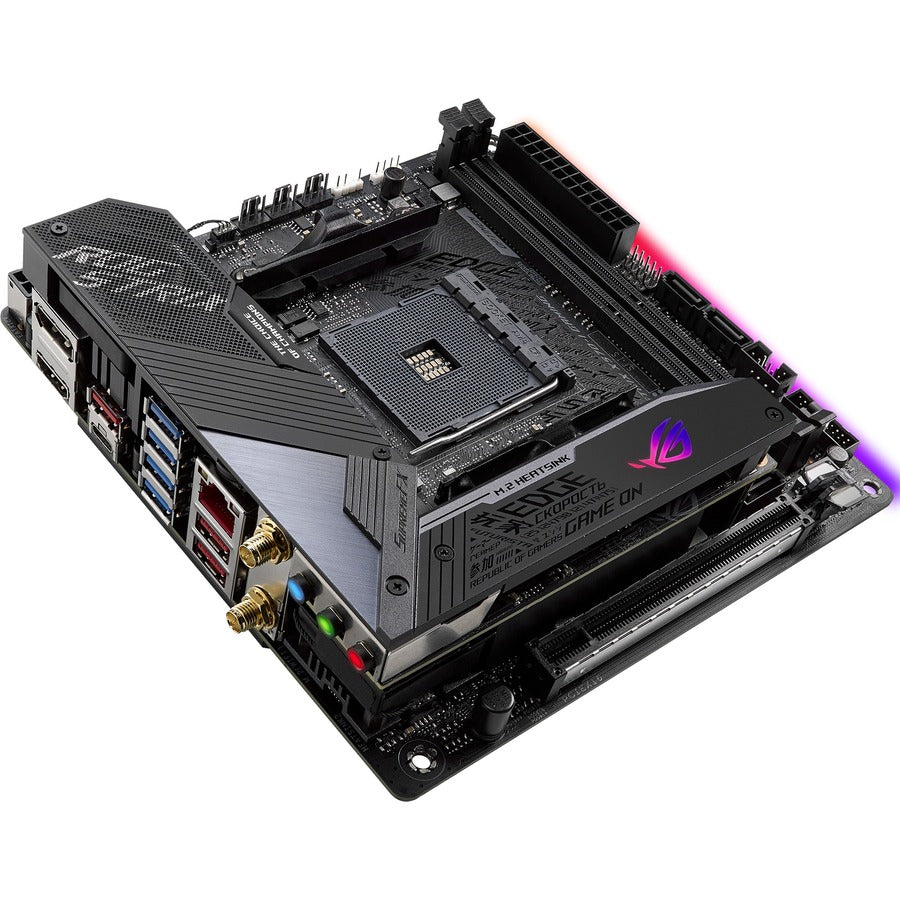

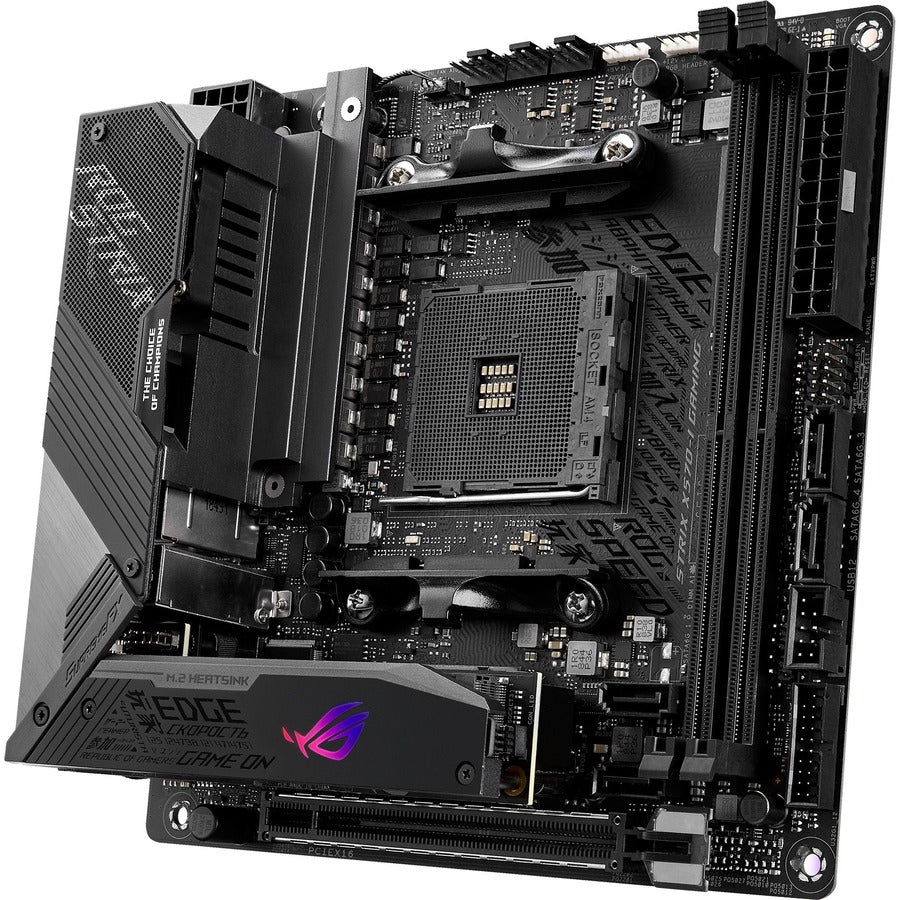

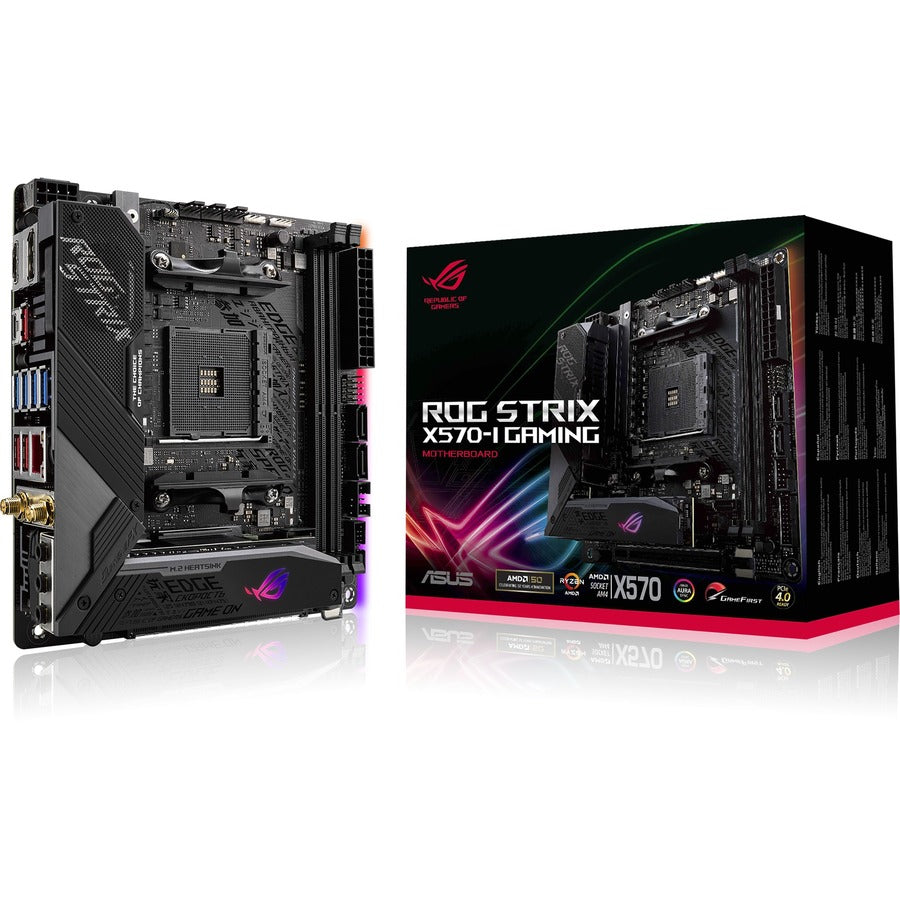

Asus ROG Strix X570-I mini-ITX Gaming Motherboard

Asus ROG Strix X570-I mini-ITX Gaming Motherboard

Regular price $313.99 USD
Regular price Sale price $313.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Asus ROG Strix Strix X570-I Gaming Desktop Motherboard

AMD X570 mini-ITX Gaming motherboard with PCIe 4.0, Aura Sync RGB, Intel Gigabit Ethernet, Wi-Fi 6 (802.11ax), M.2 Audio Combo Card, HDMI 2.0, DisplayPort 1.4, SATA 6Gb/s, and USB 3.2 Gen2.

AM4 socket
Ready for 2nd and 3rd Gen AMD Ryzen™ processors to maximize connectivity and speed with up to two M.2 Drives, USB 3.2 Gen 2 and AMD StoreMI

Aura Sync RGB
ASUS-exclusive Aura Sync RGB lighting, including RGB header and addressable Gen 2 header

Optimal Power Solution
8+2 power stages with a ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors

Comprehensive cooling design
VRM and chipset heatsinks add mass to help absorb more heat and feature miniature fans, an embedded chipset heatpipe, an M.2 heatsink and an aluminum backplate with cyber-text pattern

Gaming connectivity:

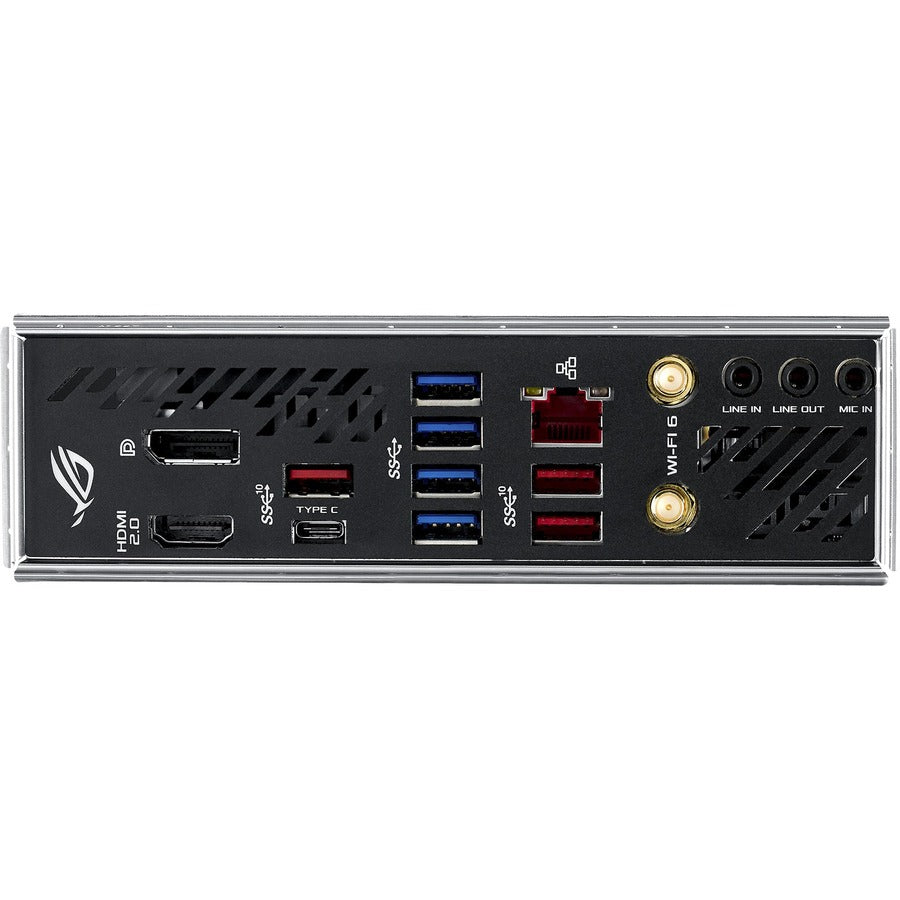

Supports PCIe 4.0, HDMI 2.0 and DisplayPort 1.4 and features dual M.2 and USB 3.2 Type-A and Type-C connectors

Gaming networking

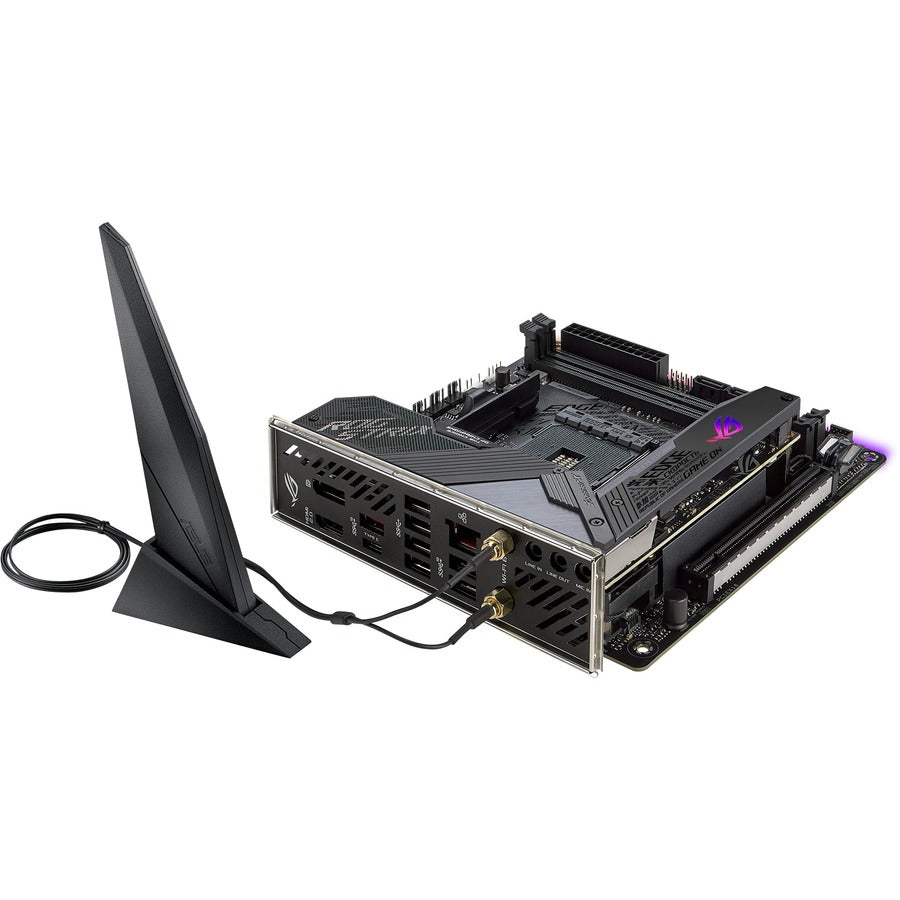

Intel Gigabit Ethernet with ASUS LANGuard, Wi-Fi 6 (802.11ax) with MU-MIMO support, and gateway teaming via GameFirst V

5-Way Optimization:
Automated system-wide tuning, providing overclocking and cooling profiles tailor made for your rig

Gaming audio
High-fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action

Gamer's Guardian
ASUS SafeSlot and premium components for maximum endurance.

ROG Strix X570-I Gaming rises above the rest to deliver incredible power and undeniable style for your small form factor gaming build. With support for the latest AMD Ryzen processors, ROG Strix X570-I Gaming is primed to deliver maximum gaming performance, while its revolutionary miniature active cooling design efficiently works to keep temperatures down. Coupled with HDMI 2.0 and DisplayPort 1.4 for ultra-high-resolution video output, ultrafast next-generation wireless networking and PCIe 4.0 connectivity, ROG Strix X570-I Gaming is a compact gaming powerhouse.

Designed to be Chilled
Effective cooling is extremely important, so ROG Strix X570-I Gaming provides comprehensive cooling features that enable higher performance at lower temperatures.

SOLID HARDWARE SPECS
With upgraded power delivery to fuel high-core-count Ryzen CPUs, plus faster storage and networking, ROG Strix X570-I Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.

General Information
Manufacturer:   ASUS Computer International
Manufacturer Part Number:   90MB1140-M0AAY0
Brand Name:   Asus ROG
Product Line:   Strix
Product Model:   Strix X570-I Gaming
Product Name:   Strix X570-I Gaming Desktop Motherboard
Product Type:   Desktop Motherboard

Processor & Chipset
Chipset Manufacturer:   AMD
Chipset Model:   X570
Total Processor Supported:   9
Processor Socket:   Socket AM4
Processor Supported:   Ryzen 3 PRO
Processor Supported:   Ryzen 5
Processor Supported:   Ryzen 5 Pro
Processor Supported:   Ryzen 7
Processor Supported:   Ryzen 9 PRO
Processor Supported:   Athlon PRO
Processor Supported:   Ryzen 3
Processor Supported:   Ryzen 7 PRO
Processor Supported:   Ryzen 9

Memory
Number of Memory Slots:   2
Memory Form Factor:   UDIMM
Memory Form Factor:   DIMM
Maximum Memory Supported:   64 GB
Memory Technology:   DDR4 SDRAM
Memory Speed Supported:   2133 MHz
Memory Speed Supported:   2400 MHz
Memory Speed Supported:   2800 MHz
Memory Speed Supported:   2933 MHz
Memory Speed Supported:   3200 MHz
Memory Speed Supported:   3466 MHz
Memory Speed Supported:   4400 MHz
Memory Speed Supported:   4600 MHz
Memory Speed Supported:   2666 MHz
Memory Speed Supported:   3000 MHz
Memory Speed Supported:   3400 MHz
Memory Speed Supported:   3600 MHz
Memory Speed Supported:   3800 MHz
Memory Speed Supported:   4000 MHz
Memory Speed Supported:   4133 MHz
Memory Speed Supported:   4266 MHz
Memory Speed Supported:   4800 MHz

I/O Controller
Controller Type:   Serial ATA/600
RAID Supported:   Yes
RAID Levels:   0
RAID Levels:   1
RAID Levels:   10

Video
Graphics Controller Manufacturer:   AMD
Graphics Controller Model:   Radeon

Network & Communication
Bluetooth:   Yes
Gigabit Ethernet:   Yes
Wireless LAN:   Yes
Wireless LAN Standard:   IEEE 802.11 a/b/g/n/ac/ax

I/O Expansions
Number of Total Expansion Slots:   1
Number of PCI Express x16 Slots:   1

Interfaces/Ports
Total Number of USB Ports:   8
Number of USB 3.2 Ports:   7
VGA:   Yes
HDMI:   Yes
DisplayPort:   Yes
Number of Network (RJ-45) Ports:   1

Onboard Interfaces
Number of SATA Interfaces:   4
Number of M.2 Interfaces:   2
Number of Onboard USB 2.0 Ports:   2
Number of Onboard USB 3.2 Ports:   2

Physical Characteristics
Form Factor:   Mini ITX
Width:   6.7"
Depth:   6.7"

Miscellaneous
Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin: CHINA

Warranty
Limited Warranty:   3 Year
