ASUS

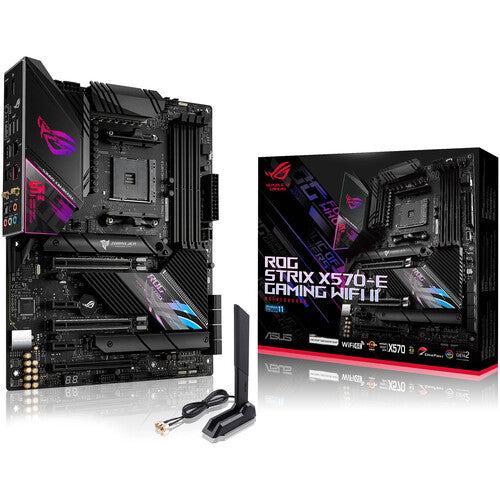

Asus ROG Strix X570-E GAMING WIFI II Gaming Desktop Motherboard

Asus ROG Strix X570-E GAMING WIFI II Gaming Desktop Motherboard

Regular price $424.99 USD
Regular price Sale price $424.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

ASUS ROG STRIX X570-E GAMING WIFI II ATX Motherboard

The ROG Strix X570-E Gaming WiFi II motherboard delivers the quintessential ROG experience. It is bristling with features such as new passive chipset cooling, WiFi 6E, plus improved overclocking and audio performance, along with DIY-friendly conveniences to help seasoned builders and beginners alike. With futuristic aesthetics complemented by onboard RGB illumination, the Strix X570-E Gaming WiFi II motherboard has everything you need to build a formidable gaming rig that rises above the rest.

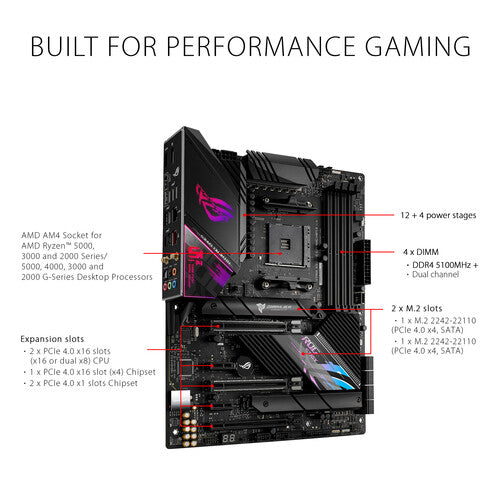

AMD AM4 socket
-Ready for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors; supports up to two M.2 drives and features USB 3.2 Gen 2 and AMD StoreMI to maximize connectivity and speed

Optimal Power Solution
-12+4 power stages with ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors

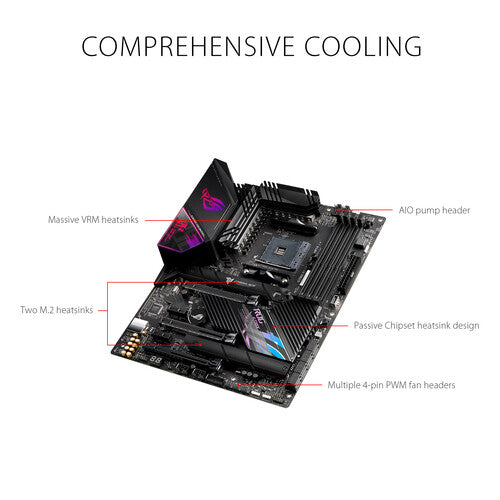

Comprehensive Cooling
- Passive chipset heatsink, VRM heatsink with 8 mm heatpipe, dual on-board M.2 heatsinks and a water pump header

High-Performance Networking
- 2.5 Gbps LAN and Intel Gigabit Ethernet with ASUS LANGuard, WiFi 6E (802.11ax) with MU-MIMO and gateway teaming via GameFirst V

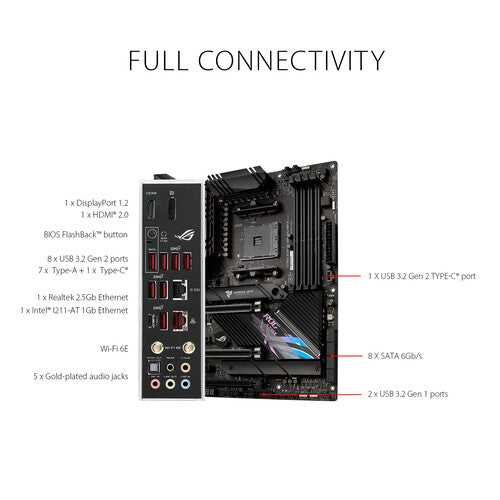

Best Gaming Connectivity
-Supports PCIe® 4.0, HDMI® 2.0, and DisplayPort™ 1.2, and features dual M.2, USB 3.2 Type-A and USB 3.2 Gen 2 Type-C connectors

5-Way Optimization
- Automated system-wide tuning including custom overclocking and cooling profiles

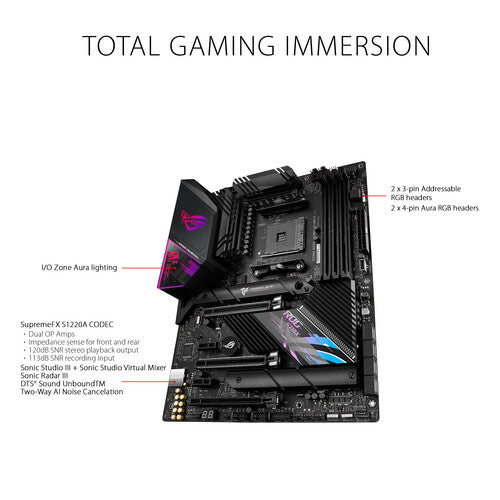

Industry-Leading Gaming Audio
- High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III

DIY Friendly Design
- M.2 Q-Latch, patented pre-mounted I/O shield, ASUS SafeSlot and BIOS FlashBack™

Unmatched Personalization
- ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers

General Information
Manufacturer:   ASUS Computer International
Manufacturer Part Number:   ROGSTRIXX570EGAMINGWIFIII
Brand Name:   Asus ROG
Product Line:   Strix
Product Model:   X570-E GAMING WIFI II
Product Name:   STRIX X570-E GAMING WIFI II Gaming Desktop Motherboard

Processor & Chipset
Chipset Manufacturer:   AMD
Chipset Model:   X570
Total Processor Supported:   1
Processor Socket:   Socket AM4
Processor Supported:   Ryzen 3 PRO
Processor Supported:   Ryzen 7
Processor Supported:   Ryzen 7 PRO
Processor Supported:   Ryzen 9
Processor Supported:   Ryzen 9 PRO
Processor Supported:   Ryzen 3
Processor Supported:   Ryzen 5
Processor Supported:   Ryzen 5 Pro

Memory
Number of Memory Slots:   4
Memory Form Factor:   DIMM
Memory Form Factor:   UDIMM
Maximum Memory Supported:   128 GB
Memory Technology:   DDR4 SDRAM
Memory Speed Supported:   2800 MHz
Memory Speed Supported:   2933 MHz
Memory Speed Supported:   3200 MHz
Memory Speed Supported:   3400 MHz
Memory Speed Supported:   3600 MHz
Memory Speed Supported:   4000 MHz
Memory Speed Supported:   4266 MHz
Memory Speed Supported:   4600 MHz
Memory Speed Supported:   5100 MHz
Memory Speed Supported:   2133 MHz
Memory Speed Supported:   2400 MHz
Memory Speed Supported:   2666 MHz
Memory Speed Supported:   3000 MHz
Memory Speed Supported:   3466 MHz
Memory Speed Supported:   3733 MHz
Memory Speed Supported:   3866 MHz
Memory Speed Supported:   4133 MHz
Memory Speed Supported:   4400 MHz
Memory Speed Supported:   4466 MHz
Memory Speed Supported:   4800 MHz

I/O Controller
Controller Type:   Serial ATA/600
RAID Supported:   Yes
RAID Levels:   10
RAID Levels:   0
RAID Levels:   1

Video
Onboard Video:   CPU Dependent Video

Audio
Audio Channels:   7.1

Network & Communication
Bluetooth:   Yes
Gigabit Ethernet:   Yes
2.5Gigabit Ethernet:   Yes
Wireless LAN:   Yes
Wireless LAN Standard:   IEEE 802.11 a/b/g/n/ac/ax

I/O Expansions
Number of Total Expansion Slots:   5
Total Number of PCI Express Slots:   5
Number of PCI Express x1 Slots:   2
Number of PCI Express x16 Slots:   3

Interfaces/Ports
Total Number of USB Ports:   8
Number of USB 3.2 Gen 2 Type-A Ports:   7
S/PDIF:   Yes
HDMI:   Yes
DisplayPort:   Yes
Number of Network (RJ-45) Ports:   2

Onboard Interfaces
Number of SATA Interfaces:   8
Number of M.2 Interfaces:   2
Total Number of Onboard USB Ports:   7
Number of Onboard USB 2.0 Ports:   4
Number of Onboard USB 3.2 Ports:   3

Physical Characteristics
Form Factor:   ATX
Width:   12"
Depth:   9.6"
