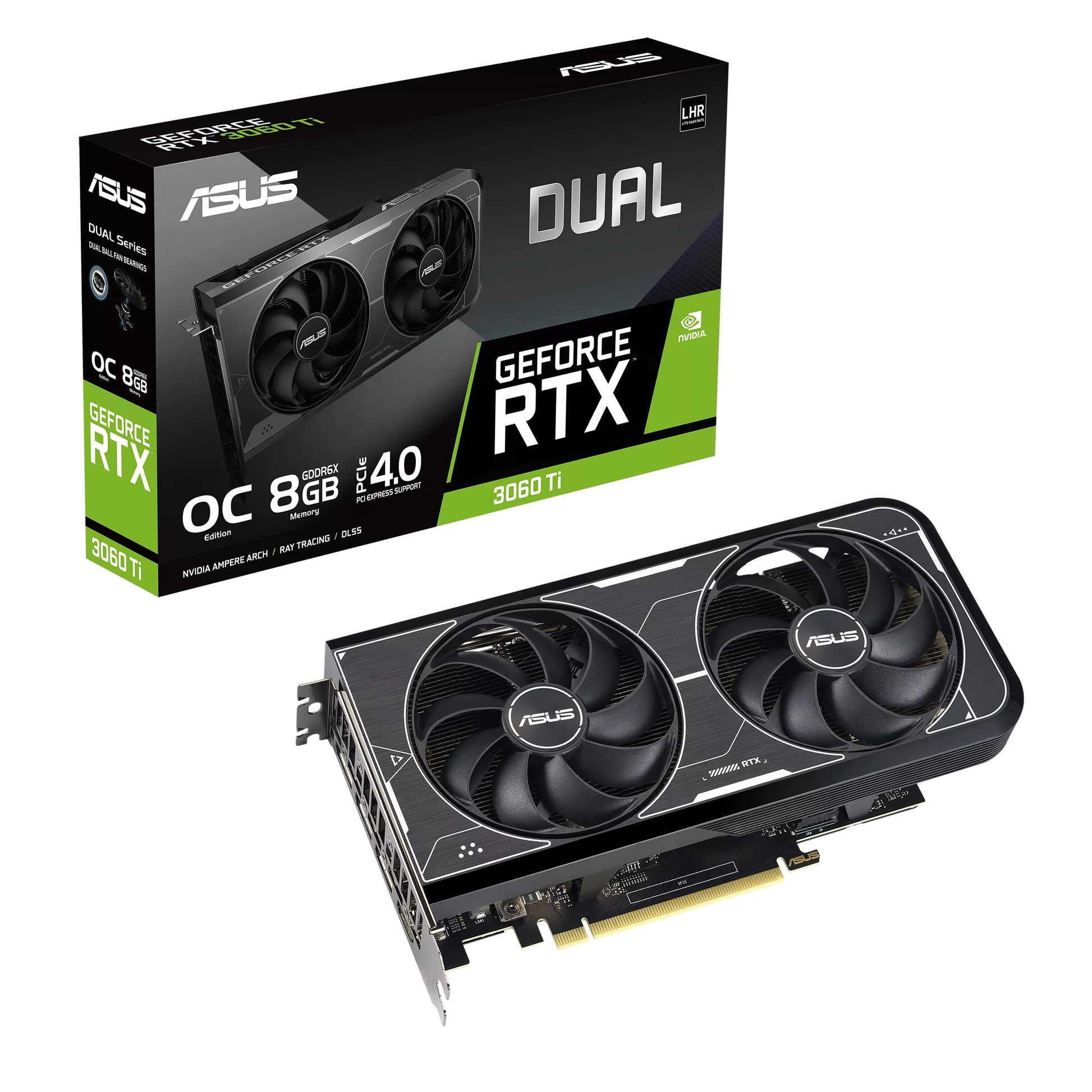

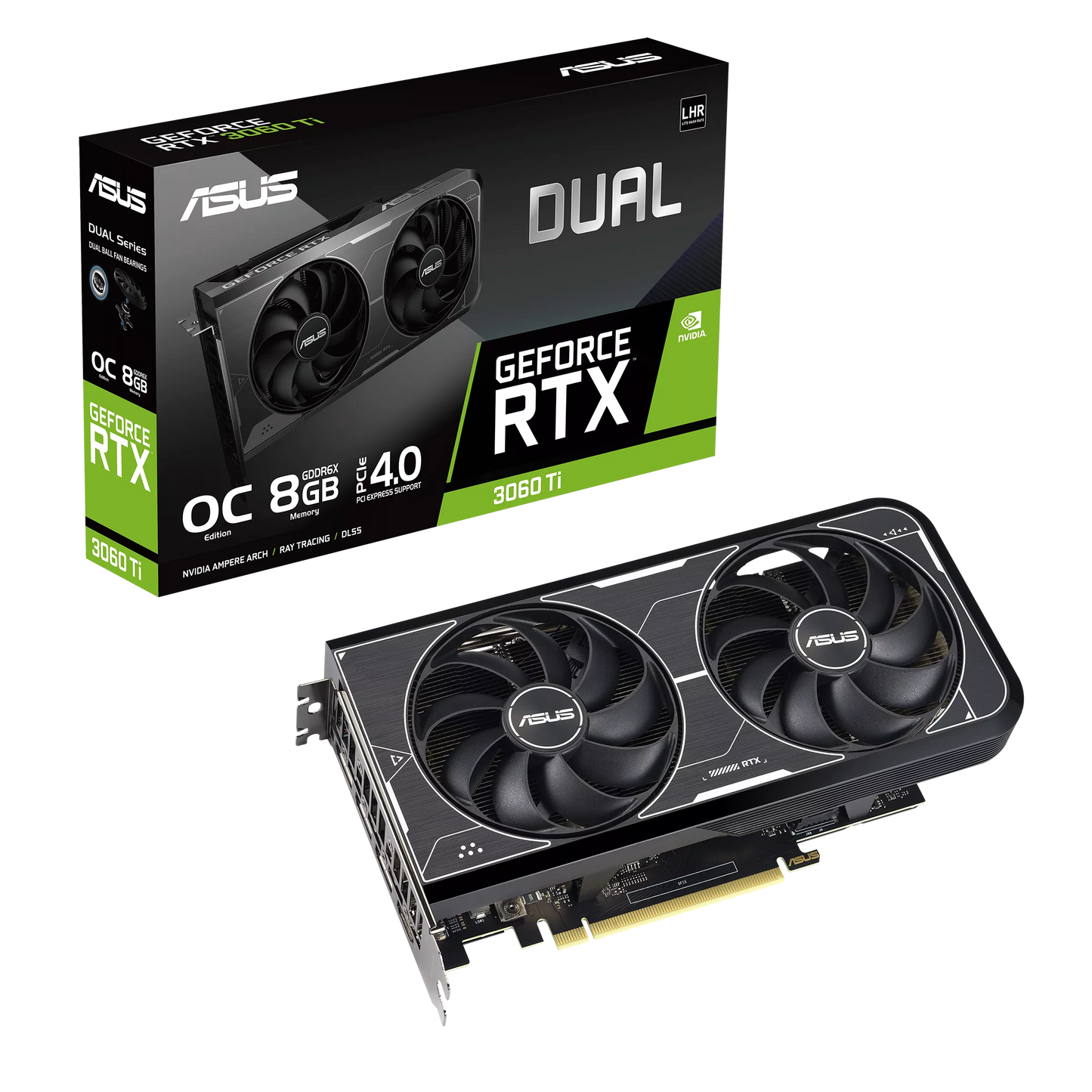

Asus Dual GeForce RTX 3060 Ti OC Edition 8GB GDDR6X Graphics Card

ASUS Dual GeForce RTX 3060 Ti OC Edition 8GB GDDR6X Graphics Card

ASUS Dual NVIDIA GeForce RTX 3060 Ti OC Edition Graphics Card (PCIe 4.0, 8GB GDDR6X memory, HDMI 2.1, DisplayPort 1.4a, 2-slot design, Axial-tech fan design, 0dB technology, and more)

ASUS Dual GeForce RTXTM 3060 Ti OC Edition 8GB GDDR6X with two powerful Axial-tech fans and a 2-slot design for broad compatibility

NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.

2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.

3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.

OC edition: Boost Clock 1710 MHz (OC Mode)/1680 MHz(Default Mode)

Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.

A 2-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis.

0dB Technology lets you enjoy light gaming in relative silence.

Dual ball fan bearings can last up to twice as long as sleeve bearing designs.

A stainless steel bracket is harder and more resistant to corrosion.

Specifications

Graphic Engine

NVIDIA® GeForce RTX™ 3060 TI

Bus Standard

PCI Express 4.0

OpenGL

OpenGL®4.6

Video Memory

8GB GDDR6X

Engine Clock

OC mode : 1710 MHz (Boost Clock)

Default mode : 1680 MHz (Boost Clock)

CUDA Core

4864

Memory Speed

19 Gbps

Memory Interface

256-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 1 (Native HDMI 2.1)

Yes x 3 (Native DisplayPort 1.4a)

HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

No

Accessories

1 x Collection card

1 x Speedsetup Manual

Software

ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions

230 x 120 x 42 mm

9.06 x 4.72 x 1.65 inch

Recommended PSU

750W

Power Connectors

2 x 8-pin

Slot

2 Slot
