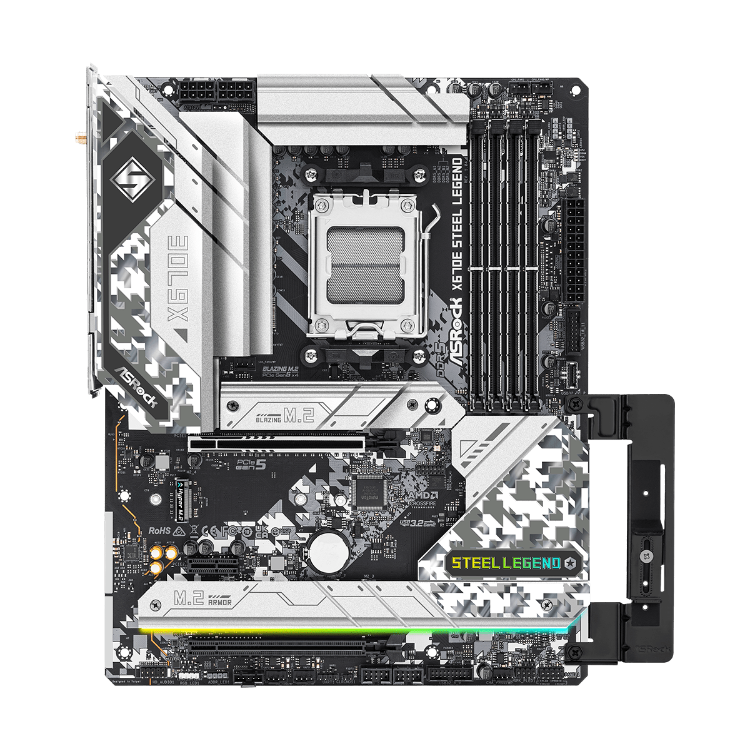

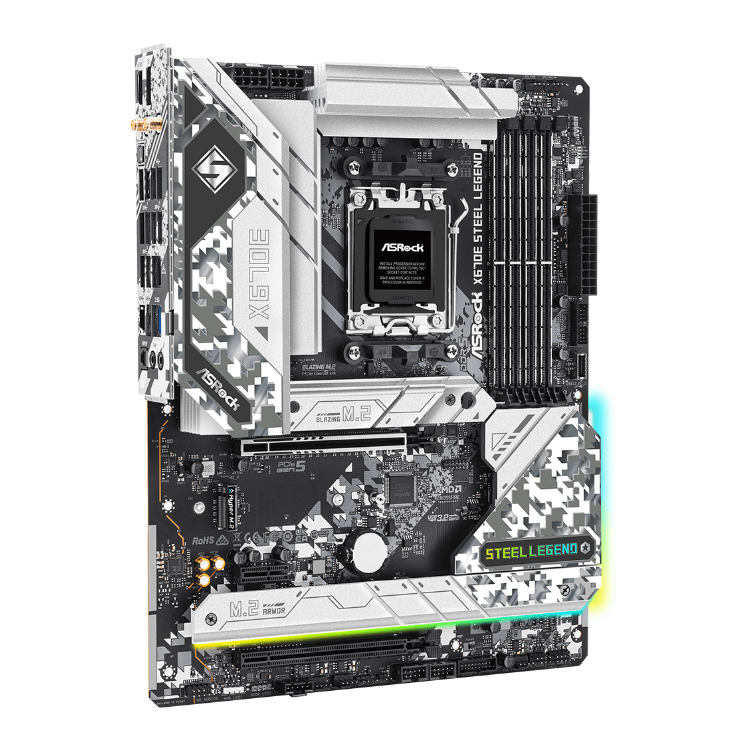

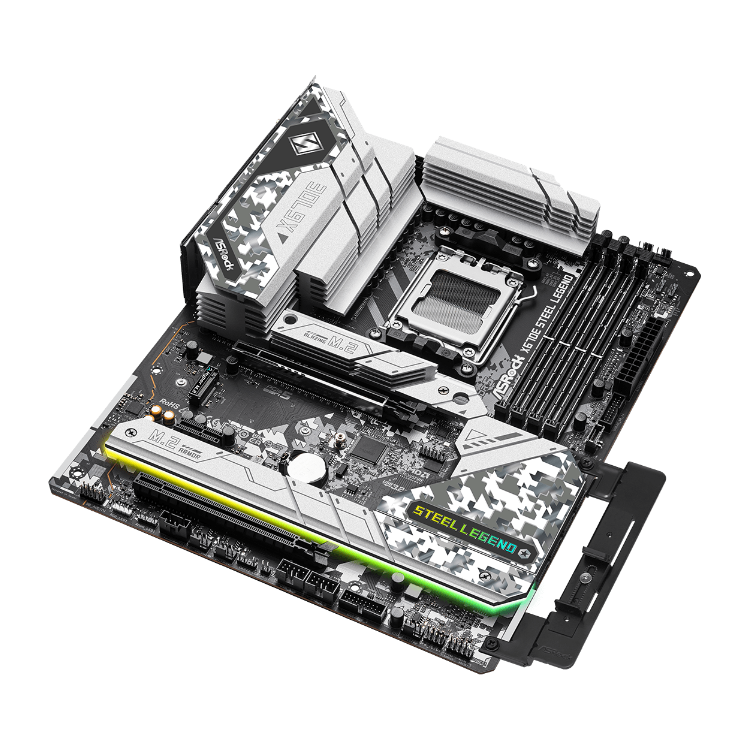

ASRock X670E Steel Legend AM5 DDR5 ATX Motherboard

ASRock X670E Steel Legend AM5 DDR5 ATX Motherboard

Regular price $343.99 USD
Regular price Sale price $343.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

ASRock X670E Steel Legend AM5 DDR5 ATX Motherboard

• Supports AMD Ryzen™ 7000 Series Processors

• 16+2+1 Phase Power Design, SPS

• 4 x DDR5 DIMMs, supports up to 6600+(OC)

• 1 PCIe 5.0 x16,

     - 1 PCIe 3.0 x16,

     - 1 PCIe 3.0 x1

• Graphics Output Options: 1 HDMI, 1 DisplayPort

• Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio

• 1 Blazing M.2(PCIe Gen5x4),

     - 3 Hyper M.2 (PCIe Gen4x4),

     - 4 SATA3

• 2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front),

     - 1 USB 3.2 Gen2 Type-A (Rear),

     - 10 USB 3.2 Gen1 (6 Rear, 4 Front)

• Realtek 2.5G LAN, Realtek 1G LAN

• 802.11ax Wi-Fi 6E + Bluetooth


Unique Feature
Superb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5


Rock-Solid Durability
- Server-Grade Low-Loss PCB
- 16+2+1 Power Phase, 60A SPS with Enlarged Heatsink Armor
- Flexible Integrated I/O Shield
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)


Ultrafast Connectivity
- 2.5G LAN, 802.11ax Wi-Fi 6E Module


EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer


EZ Troubleshooter
- ASRock Post Status Checker


CPU
- Supports AMD Socket AM5 RyzenTM 7000 Series Processors


Chipset
- AMD X670


Memory
- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 6600+(OC)
- Max. capacity of system memory: 128GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules


BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support


Graphics
Integrated AMD RDNATM 2 graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz


Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Nahimic Audio


LAN
1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
1 x Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111)


Wireless LAN
- 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports Dual-Band 2x2 with extended 6GHz band supportNote
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth + High speed class II
- Supports MU-MIMO
Note: Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.


Slots
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 modeNote
- 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 modeNote
Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE2) Note
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- Supports AMD CrossFireTM
- 15mu Gold Contact in VGA PCIe Slot (PCIE1)
Note: Supports NVMe SSD as boot disks


Storage
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) modeNote
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) modeNote
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) modeNote
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) modeNote
- 4 x SATA3 6.0 Gb/s Connectors
Note: Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit


RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices


Connector
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED HeaderNote1
- 3 x Addressable LED HeadersNote2
- 1 x CPU Fan Connector (4-pin) Note3
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) Note4
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) Note5
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x ThunderboltTM AIC Connector (5-pin) (Supports ASRock ThunderboltTM 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)
Note1: Supports in total up to 12V/3A, 36W LED Strip
Note2: Support in total up to 5V/3A, 15W LED Strip
Note3: CPU_FAN1 supports the fan power up to 1A (12W).
Note4: CPU_FAN2/WP supports the fan power up to 2A (24W).
Note5: CHA_FAN1 to 4/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1 to 4/WP can auto detect if 3-pin or 4-pin fan is in use.

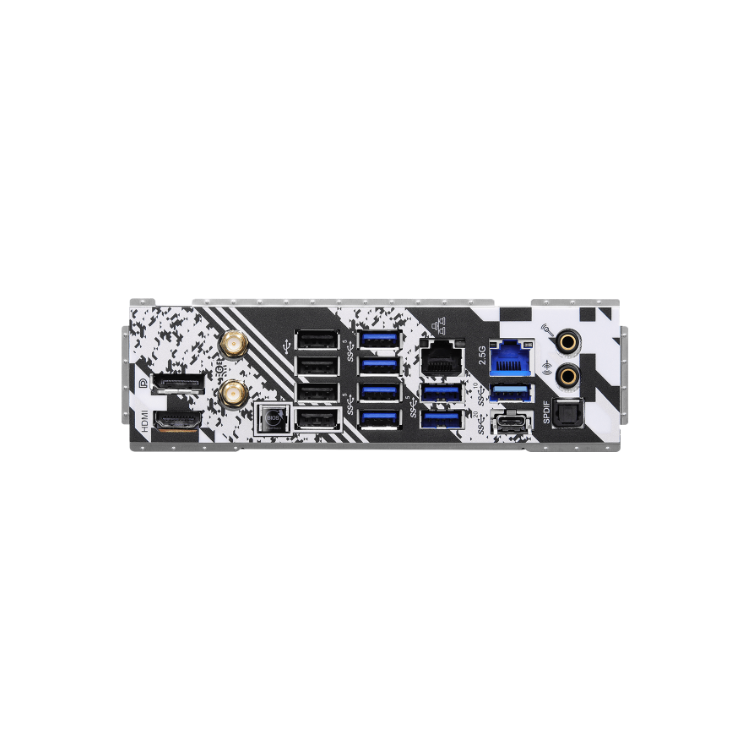

Rear Panel I/O
- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x Optical SPDIF Out Port
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 6 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 2 x RJ-45 LAN Ports
- 1 x BIOS Flashback Button
- 1 x Line Out Jack (Gold Audio Jack)
- 1 x Microphone Input Jack (Gold Audio Jack)


Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNCNote
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Note: These utilities can be downloaded from ASRock Live Update and APP Shop.

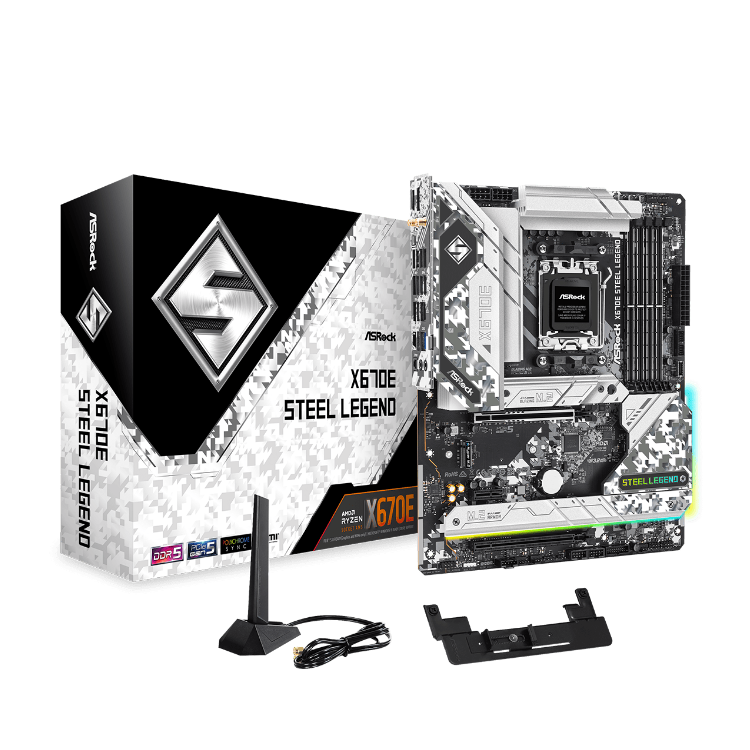

Accessories
- 1 x User Manual
- 2 x SATA Data Cables
- 1 x ASRock WiFi 2.4/5/6 GHz Antenna
- 4 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
- 1 x Graphics Card Holder


Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 8 Layer PCB


OS
- Microsoft Windows 10 64-bit / 11 64-bit


Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)


Item Dimension (L inchxW inchxH inch)
15 x 13 x 4

Weight
6.00 lb

Warranty Information
3 Years
