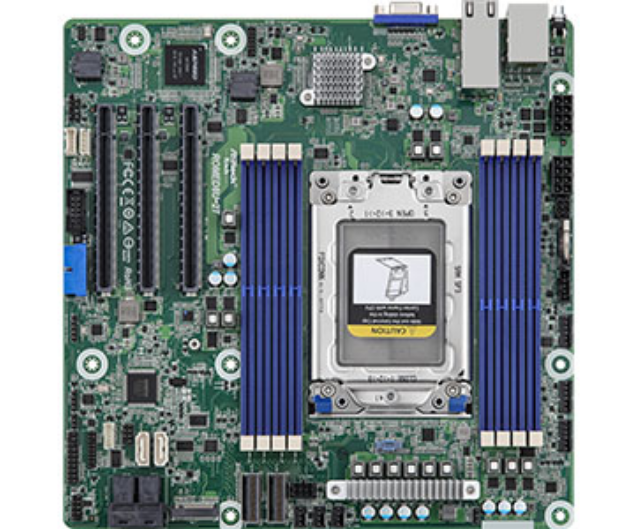

ASRock Rack ROMED8U-2T AMD EPYC7003-7002 mATX Motherboard

ASRock Rack ROMED8U-2T AMD EPYC7003-7002 SoC LGA4094 SP3 256GB mATX Motherboard

• Micro-ATX (9.6" x 9.6")

• Supports AMD EPYC™ 7003 and 7002 series Processors

• 8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS

• 3 PCIe4.0 x16

• 2 SlimSAS (PCIe4.0 x8)

• Supports 1 M.2 (PCIe4.0 x4 or SATA 6Gb/s)

• 11 SATA 6Gb/s (from 2 Mini-SAS HD, 2 SATA 7-pin, 1 M.2)

• 2 RJ45 (10GbE) by Intel® X710-AT2

• Remote Management (IPMI)

Form Factor

Micro-ATX

Processor System

CPU

Support AMD EPYC^TM 7003 and 7002 Series Process

* A BIOS update is required to support AMD EPYC^TM 7003 Series Processors.

Socket

Single Socket SP3 (LGA4094)

Chipset

System on Chip

System Memory

Supported DIMM Quantity

8 DIMM slots (1DPC)

Supported Type

Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS

Max. Capacity per DIMM

RDIMM: up to 64GB

LRDIMM: up to 128GB

RDIMM/LRDIMM-3DS: up to 256GB

DIMM Frequency

RDIMM/ LRDIMM: max. 3200MHz

Voltage

1.2V

PCIe Expansion Slots (SLOT7 close to CPU)

PCIe x 16

SLOT6: PCIe4.0 x16

SLOT5: PCIe4.0 x16

SLOT4: PCIe4.0 x16

Other PCIe Expansion Connectors

M.2 slot

1 M-key (PCIe4.0 x4 or SATA 6Gb/s), supports 2280 form factor

SlimSAS

2 SlimSAS (PCIe4.0 x8)

SATA/SAS Storage

PCH Built-in Storage

AMD EPYC 7003/7002 (11 SATA 6Gb/s):

2 Mini-SAS HD, 2 SATA 7-pin, 1 M.2

Ethernet

Additional GbE Controller

1 Intel X710-AT2: 2 RJ45 (10GbE)

Server Management

BMC Controller

ASPEED AST2500

IPMI Dedicated GLAN

1 x Realtek RTL8211E for dedicated management GLAN

Graphics

Controller

ASPEED AST2500

Rear I/O

UID Button/LED

1

VGA Port

1 DB15

USB 3.2 Gen1 Port

2 Type-A (USB3.2 Gen1)

RJ45

2 RJ45 (10GbE)

Dedicate LAN

1 RJ45 (Dedicated IPMI)

Internal Connector/Headers

Other Power Connectors

1 (6-pin) for HDD power

Auxiliary Panel Header

1 (18-pin): chassis intrusion, system fault LED, locate, SMBus

System Panel

1 (9-pin): power switch, reset switch, system power LED, HDD activity LED

NMI Button

1

COM Header

1

Speaker Header

1

Fan Header

6 (6-pin)

Thermal Sensor Header

1

TPM Header

1 (13-pin, SPI), 1 (17-pin, LPC)

SGPIO Header

1
