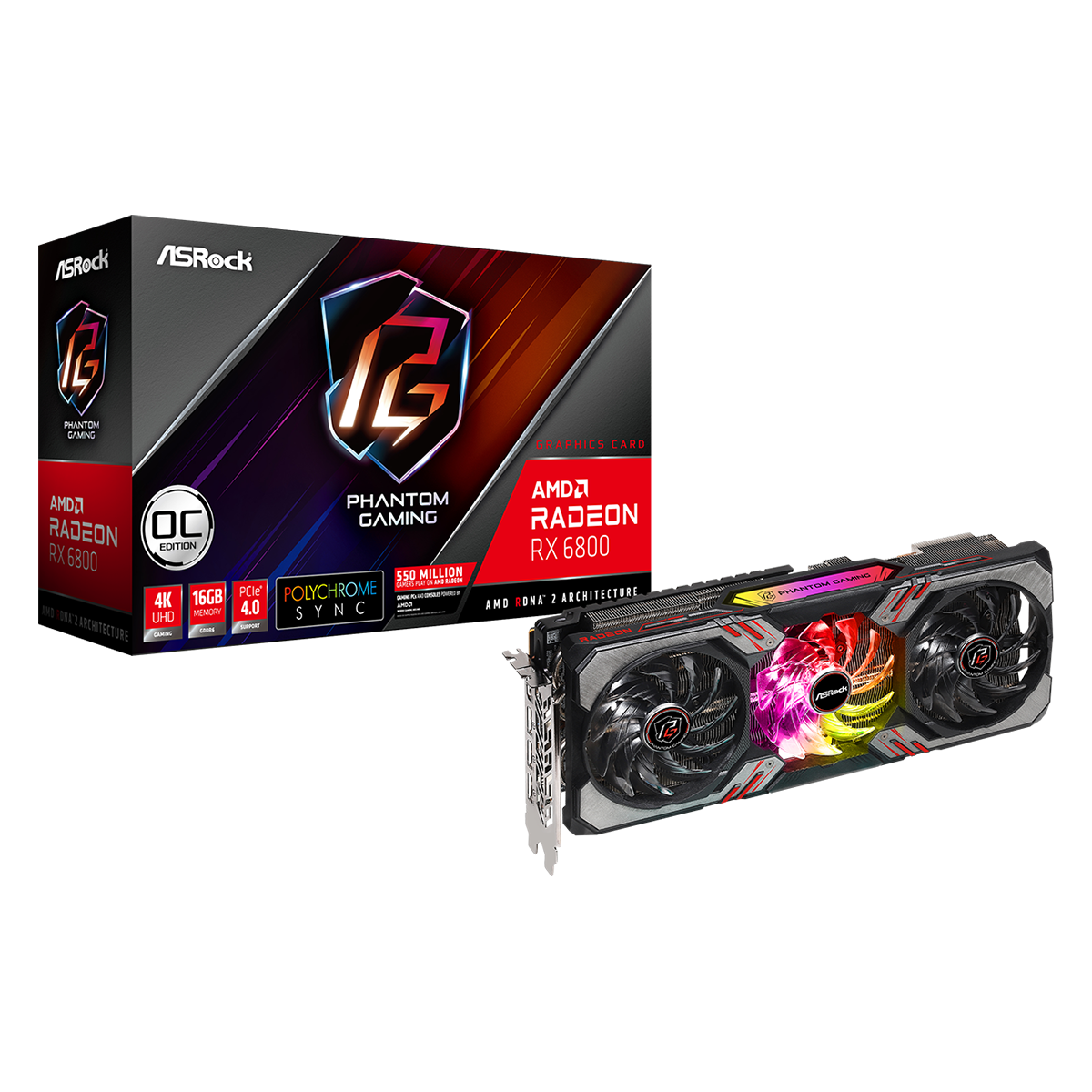

ASRock AMD Radeon RX 6800 Phantom Gaming D 16G OC

Clock: GPU / Memory

Boost Clock: Up to 2190 MHz / 16 Gbps

Game Clock: 1980 MHz / 16 Gbps

Base Clock: 1850 MHz / 16 Gbps

Key Specifications

7nm AMD Radeon™ RX 6800 Graphics

16GB 256-bit GDDR6

AMD RDNA™ 2 Architecture

Hardware Raytracing

PCI® Express 4.0 Support

2 x 8-pin Power Connectors

3 x DisplayPort™ 1.4 with DSC / 1 x HDMI™ 2.1 VRR

Key Features

Polychrome SYNC

Phantom Gaming 3X Cooling System

Striped Axial Fan

Reinforced Metal Frame

Stylish Metal Backplate

0dB Silent Cooling

Super Alloy Graphics Card

Phantom Gaming 3X Cooling System

For Cool and Silent.

Crafted for the best balance between the thermal efficiency and silence by all the details

Striped Axial Fan

Designed For Enhanced Airflow.

ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

Air Deflecting Fin

Guide Airflow to Go Through Regularly & Quickly.

Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.

Graphics Engine
- AMD Radeon^TM RX 6800 Graphics
Bus Standard
- PCI Express 4.0 x16
DirectX
- 12 Ultimate
OpenGL
- 4.6
Memory
- GDDR6 16GB
Engine Clock
- Boost Clock: Up to 2190 MHz
- Game Clock: 1980 MHz
- Base Clock: 1850 MHz
Stream Processors
- 3840
Compute Units
- 60
Memory Clock
- 16 Gbps
Memory Bus
- 256-bit
Resolution
- Digital Max Resolution: 7680 x 4320
Interface
- 1 x HDMI^TM 2.1 VRR
- 3 x DisplayPort^TM 1.4 with DSC
HDCP
- Yes
Multi-view
- 4
Recommended PSU
- 700W
Power Connector
- 2 x 8-pin
Accessories
- 1 x Quick Installation Guide
Item Dimension (L"x W"x H")
12 x 6 x 3
Weight
4.41 LB
Warranty Information
3 years
