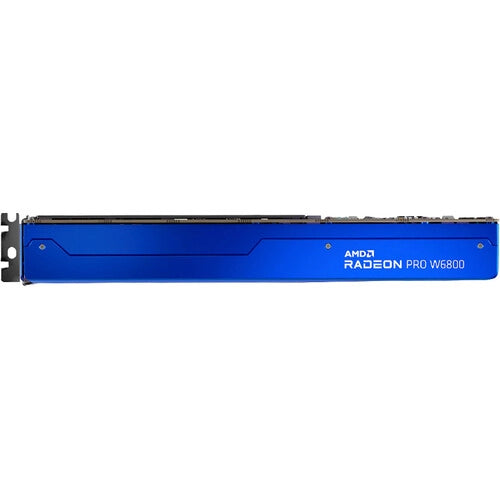

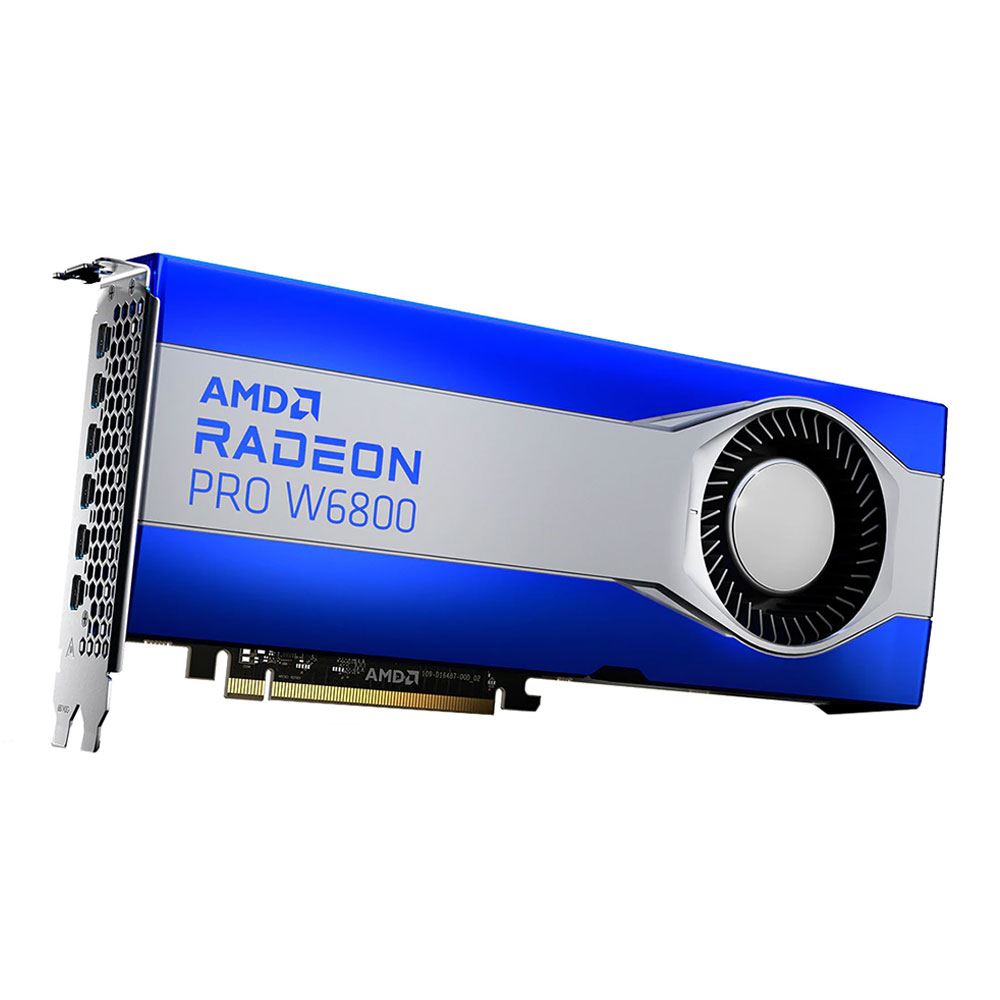

AMD Radeon PRO W6800 32GB GDDR6 Graphics Card

AMD Radeon PRO W6800 32GB GDDR6 Graphics Card

Discover Your Software’s Full Potential
Introducing the Incredibly Rapid Radeon™ PRO W6800.

Delivering a Gigantic 32 GB of High-Performance ECC Memory, Hardware Raytracing, Optimizations for 6 Ultra-HD HDR Displays, Accelerated Software Multi-Tasking, PCIe® 4.0 for Advanced Data Transfer Speeds, and Certifications for Many Popular Applications. All as Standard with AMD Radeon™ PRO W6800 Graphics.

6 Displays as Standard.
That’s a Lot.

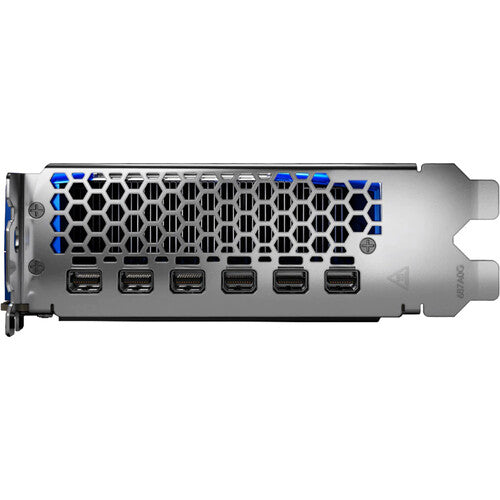

Optimized for Six modern HDR, Ultra-HD and Ultrawide displays. With mini-DisplayPort™ connections to allow more monitors in a carefully condensed form. Taking user efficiencies to the next level.

32 GB of Fast Memory.
Leap into Massive Projects.
Using high-performing GDDR6 memory, this GPU brings the potential to take on legendary scale projects, and build models that you never thought were possible on a single GPU. With the ability to load multiple, huge textures into the gigantic 32GB memory space, this GPU will politely laugh at projects that before made your previous GPU nervously sweat and shake. Leap into those projects knowing that this GPU is here to support, not let you down.

Generational Leaps.
(Basically, It’s Fast.)
Using our latest astonishing graphics architecture, we’ve taken performance further. As your projects get bigger, and more demanding, your GPU can keep pushing workloads towards that impending deadline. With the right hardware, there’s no reason for those deadlines to be as scary as they once were.

GPU Architecture
AMD RDNA^TM 2
Hardware Raytracing
Yes
Lithography
TSMC 7nm FinFET
Ray Accelerators
60
Stream Processors
3840
Compute Units
60
Peak Half Precision (FP16) Performance
35.66 TFLOPs
Peak Single Precision (FP32) Performance
17.83 TFLOPs
Peak Double Precision (FP64) Performance
1.11 TFLOPs
Transistor Count
26.8 Billion
OS Support
Windows 10 - 64-Bit Edition
Linux x86_64
Requirements

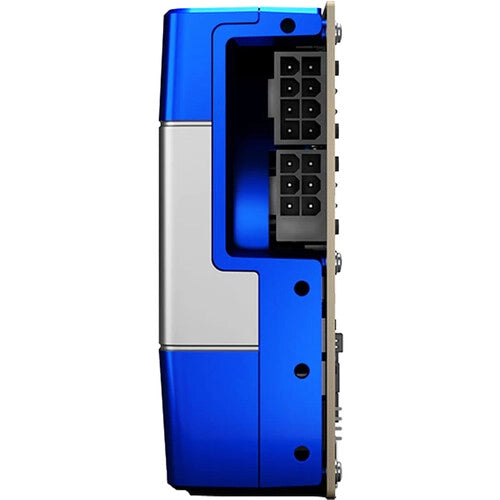

External Power Connectors
1x PCIe 6-pin, + 1x PCIe 8-pin
Total Board Power (TBP)
250W Peak
PSU Recommendation
650W Minimum
GPU Memory
Dedicated Memory Size
32 GB
Dedicated Memory Type
GDDR6
Infinity Cache
128 MB
Memory Interface
256-bit
Peak Memory Bandwidth
Up to 512 GB/s
Memory ECC Support
Yes

100-506157

727419313339
